Description
Specifications
|

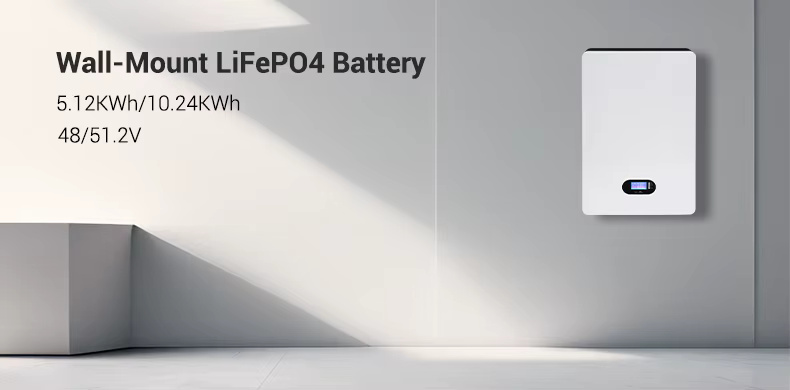

Wall- Mount LiFePO4 Battery
|
||||
|
Battery Style
|
48/51.2V100AH-T1
|
48/51.2V100AH-A1
|
48/51.2V200AH-A1
|
|
|
Energy
|
5.12KWh
|
5.12KWh
|
10.24KWh
|
|
|
Nominal Voltage
|
48/51.2V
|
48/51.2V
|
48/51.2V
|
|
|
Rated Capacity
|
100Ah
|
100Ah
|
200Ah
|
|
|
End-of-charge Voltage
|
54/58V
|
54/58V
|
54/58V
|
|
|
End-of-discharge Voltage
|
39/42V
|
39/42V
|
39/42V
|
|
|
Standard Charge Current
|
50A
|
50A
|
50A
|
|
|
Max. Charge Current
|
100A
|
100A
|
100A
|
|
|
Standard Discharge Current
|
100A
|
100A
|
100A
|
|
|
Max. Disharge Current
|
100A
|
100/200A
|
100/200A
|
|
|
Max. Peak Current
|
200A
|
200A
|
200A
|
|
|
Communication
|
Quick plug terminal
|
|||
|
Charge/ Discharge Interface
|
RS485/CAN
|
|||
|
Communication Interface
|
RS485/CAN
|
|||
|
Shell Material/ Color
|
Metal/ White
|
|||
|
Size
|
770*520*90mm
|
590*410*145mm
|
850*466*145mm
|
|
|
Weight
|
42/44kg
|
43/45kg
|
90/92kg
|
|
|
Work Temperature Range
|
Charge: 0-50℃       Discharge: -15-60℃
|
|||
