Description
|
Model
|
SE-G5.1 Pro-B
|
|
Battery Type
|
LiFePO4
|
|
Nominal Battery Energy
|
5.12kwh
|
|
Operating Voltage
|
43.2~57.6
|
|
Nominal Voltage
|
51.2V
|
|
Nominal Capacity
|
100Ah
|
|
Recomended Charge & Discharge Current
|
50A
|
|
Max Charge/Discharge Current
|
100A
|
|
Recommended Depth of Discharge (DOD)
|
90%
|
|
Net weight
|
45kg
|
|
Dimension[W*D*H]
|
440*133*540mm
|
|
Storage Temperature
|
0°C~35°C
|
|
Communication
|
CAN2.0,RS485
|
|
Cycle Life
|
≥6000(25°C+2°C.0.5C/0.5C,90%DOD,70%EOL)
|
|
Protection Level
|
IP20
|
|
Expansion
|
Max. 64 pcs pack in parallel (Max. 32 pcs no external setup)
|
|
Certification
|
UN38.3,IEC62619, CE.UK VDE2510-50.CEI 0-21,FCC, UL1973, UL9540A
|
Description

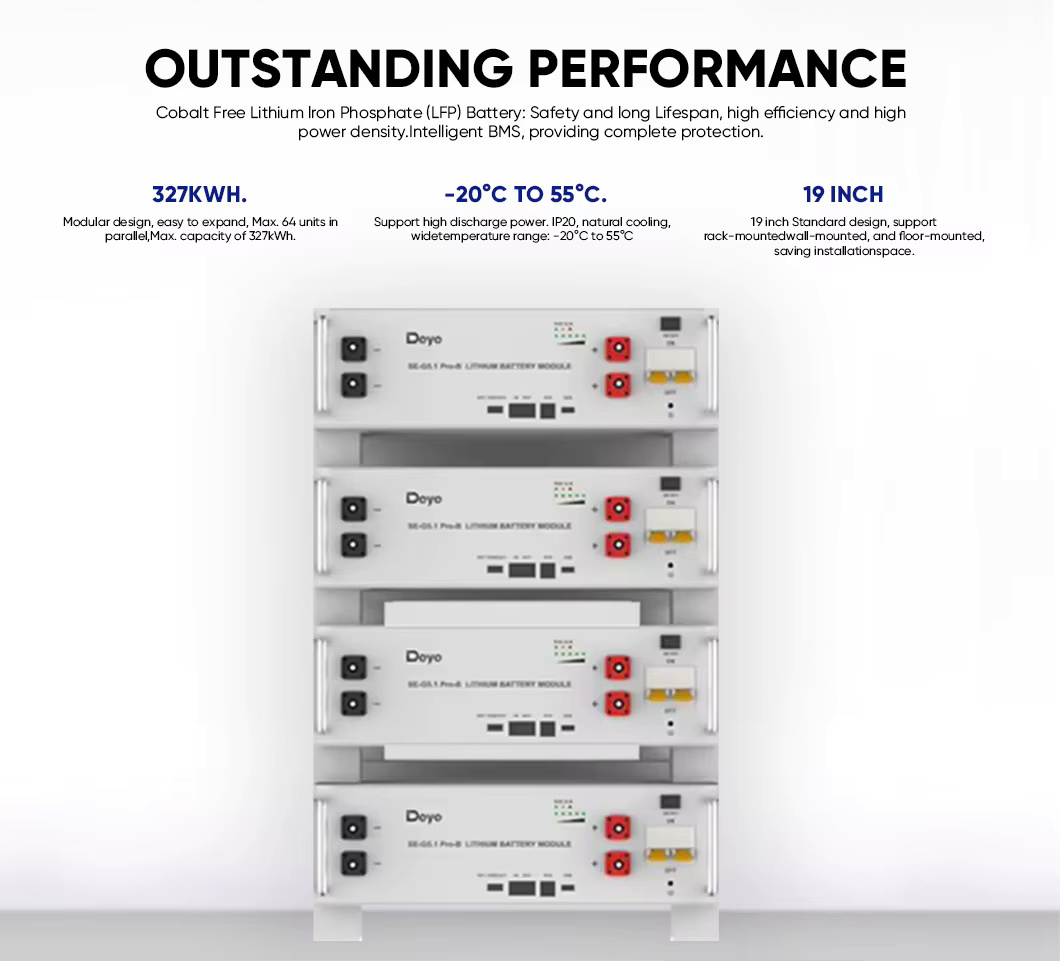

The Deye SE-G5.1Pro-B is a high-quality lithium iron phosphate (LiFePO4) battery designed for energy storage in both residential and commercial applications. Its modular design allows for easy expansion, with up to 64 units able to be connected in parallel, providing a total capacity of up to 327 kWh.
Key Features:
Safety: The battery uses cobalt-free LFP technology, ensuring enhanced safety and a long lifespan. The intelligent Battery Management System (BMS) provides comprehensive protection.
Reliability: The battery supports high discharge capabilities and operates efficiently within a wide temperature range from -20°C to 55°C. The IP20 rating and natural cooling system ensure durability.
Flexibility: The modular design allows for expansion, with up to 64 units in parallel for a total capacity of 327 kWh.
Convenience: The SE-G5.1Pro-B features automatic networking functionality for easy maintenance procedures and supports remote monitoring and firmware updates via a USB drive.
Eco-Friendliness: The battery is made from non-toxic, environmentally friendly materials, contributing to sustainability and lower environmental impact.

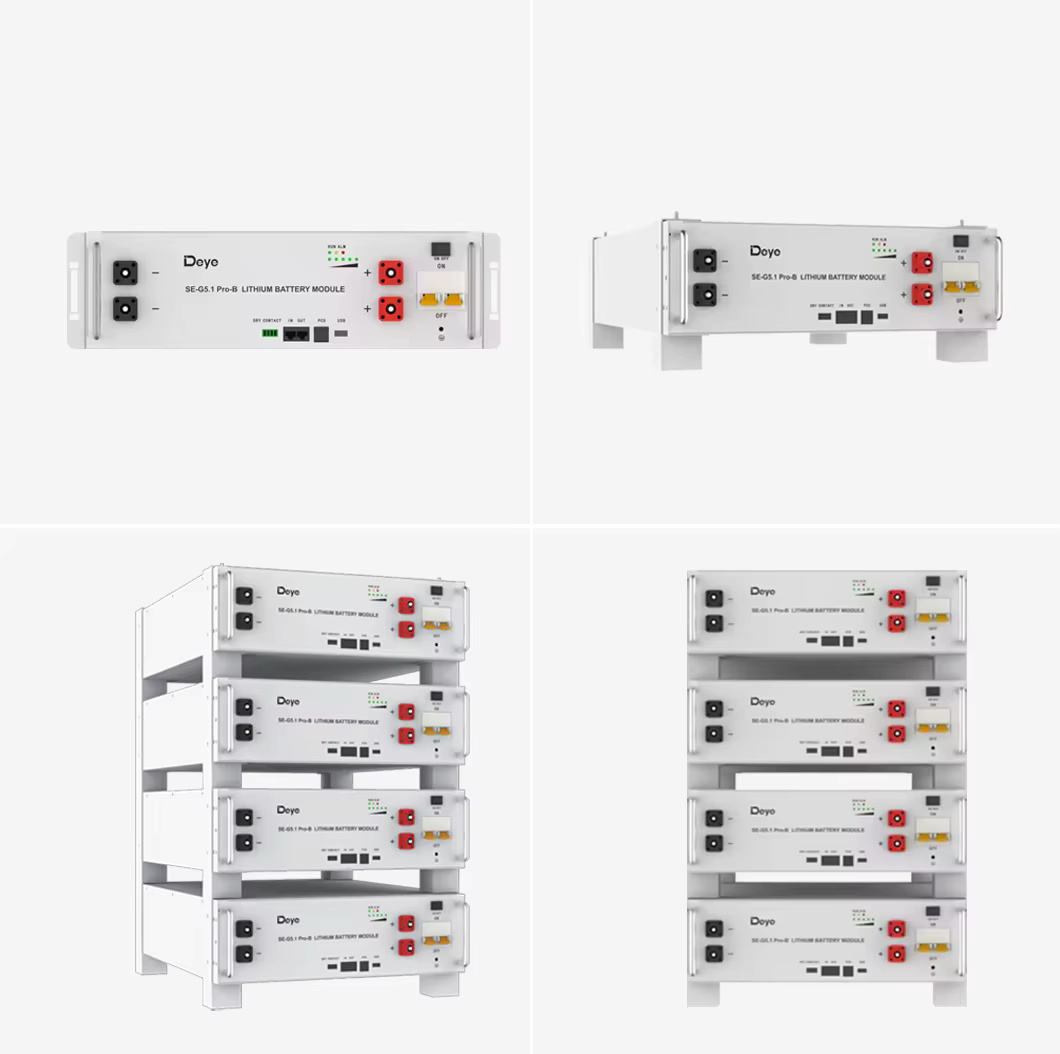

Installation Options: The battery offers flexible installation options such as rackmount, wall mount, and floor mount, saving space and meeting various requirements.
