Description
|

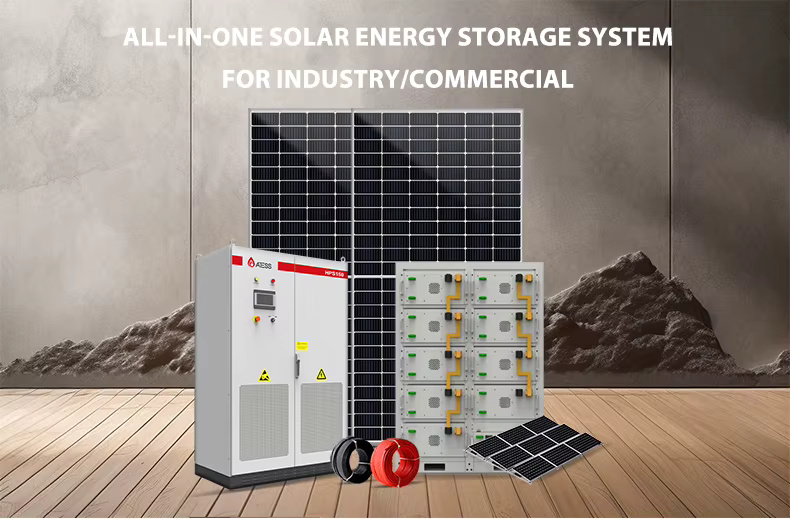

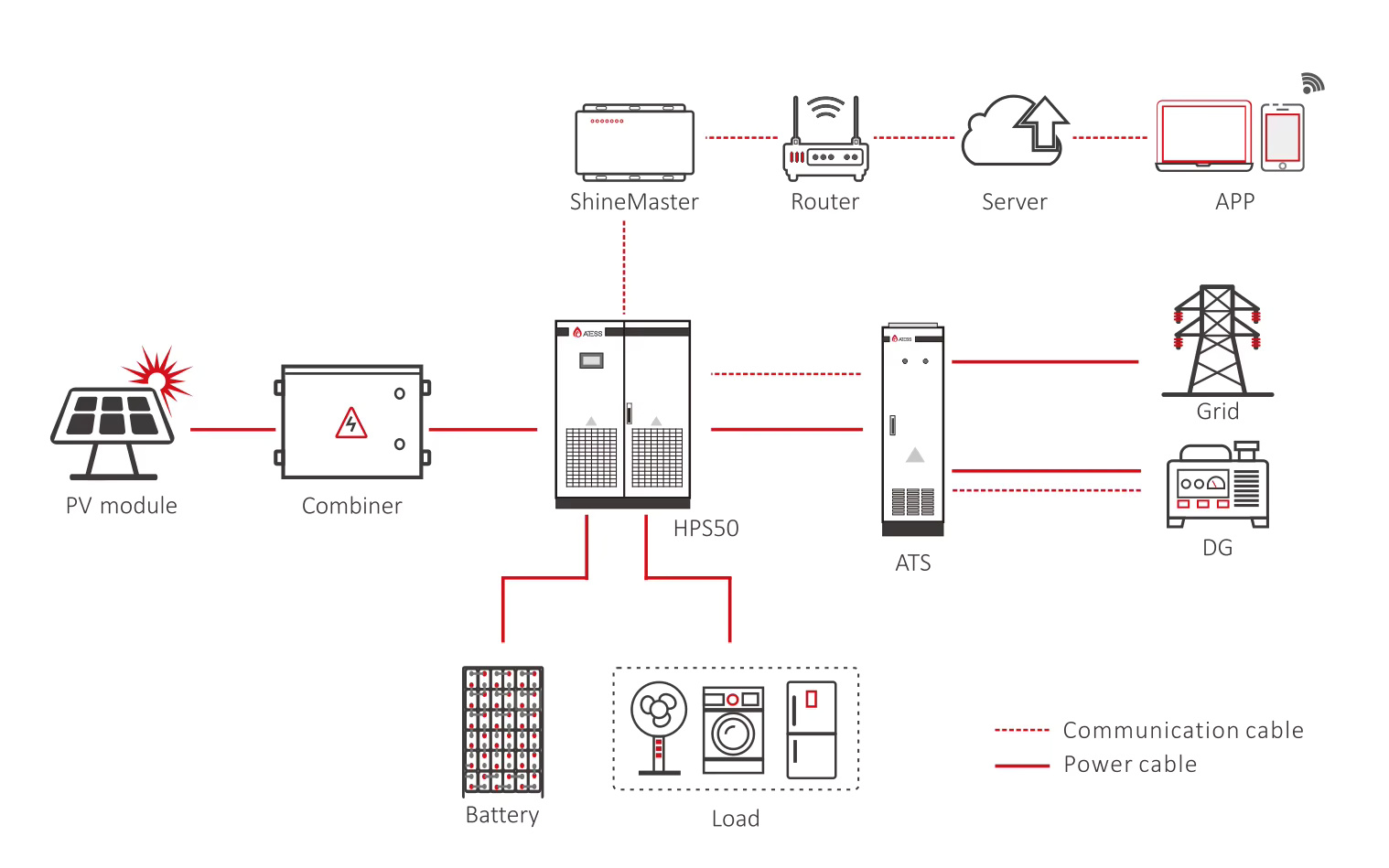

Complete Set Hybrid Solar System Configuration
|
|||
|
System Model
|
LS30KW-HY
|
LS50KW-HY
|
LS100KW-HY
|
|
Rated Capacity
|
30000W
|
50000W
|
100000W
|
|
Half Cut 550W Solar Panel
|
55pieces
|
96pieces
|
195pieces
|
|
Hybrid Inverter
|
HPS 30
|
HPS 50
|
HPS 100
|
|
PV Combiner Box
|
1piece,5 input 1output
|
1piece,8 input 1output
|
1piece,15 input 1output
|
|
LFP Battery Bank
|
76.8KWH
|
107.52KWH
|
230.4KWH
|
|
PV Cables
|
1000m
|
1600m
|
3000m
|
|
MC4 Connector
|
20pairs
|
50pairs
|
100pairs
|
|
Mounting System
|
Customized based on your installation site
|
||
|
System Model
|
LS120KW-HY
|
LS150KW-HY
|
|
Rated Capacity
|
120000W
|
150000W
|
|
Half Cut 550W Solar Panel
|
234pieces
|
280pieces
|
|
Hybrid Inverter
|
HPS 120
|
HPS 150
|
|
PV Combiner Box
|
1piece,18 input 1output
|
1piece,20input 1output
|
|
LFP Battery Bank
|
322.56KWH
|
430.08KWH
|
|
PV Cables
|
3600m
|
4000m
|
|
MC4 Connector
|
120pairs
|
140pairs
|
|
Mounting System
|
Customized based on your installation site
|
|
