Description
Specification
|
Model
|

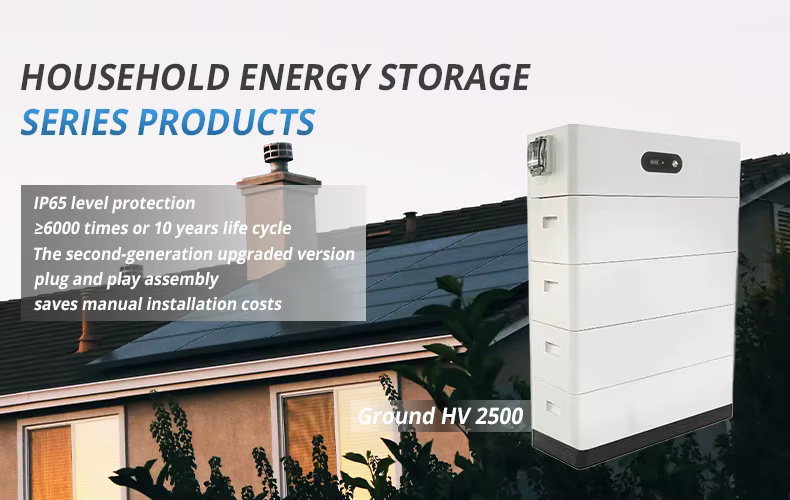

Ground HV-10K
|
Ground HV-12.5K
|
Ground HV-15K
|
Ground HV-17.5K
|
Ground HV-20K
|
|
Capacity
|
52AH
|
||||
|
Nominal Voltage
|
192V
|
240V
|
288V
|
336V
|
384V
|
|
Battery Type
|
Lifepo4
|
||||
|
Connection
|
1P60S
|
1P75S
|
1P90S
|
1P105S
|
1P120S
|
|
Working Range(V)
|
171V-225V
|
213.75V-281.25V
|
256.5V-337.5V
|
299.25V-393.75V
|
342V-450V
|
|
Working Temperature(℃)
|
Charge: 0℃~+55℃ Discharge:-20℃~+60℃
|
||||
|
Nominal Capacity(kWh)
|
9.984kWh
|
12.48kWh
|
14.976kWh
|
17.472kWh
|
19.968kWh
|
|
Max. Charge Current(A)
|
35A
|
||||
|
Max. Discharge Current(A)
|
35A
|
||||
|
Weight
|
~105kg
|
~129kg
|
~152.3kg
|
~175.5kg
|
~199.5kg
|
|
Dimension(W’D*L)
|
220x606x900mm
|
220x606x1070mm
|
220x606x1240mm
|
220x606x1410mm
|
220x606x1580mm
|
|
IP Protection
|
IP65
|
||||
|
Transportation SOC
|
30%
|
||||
|
Storage
|
-10°C~+35°C
|
||||
|
Temperature(“C) Cycle Life
|
>6000. 25℃, 0.5C 85%DOD
|
||||
|
Recycleable
|
Fully recyclable at the end of life
|
||||
|
Istallation
|
Floor Installation
|
||||
