Description

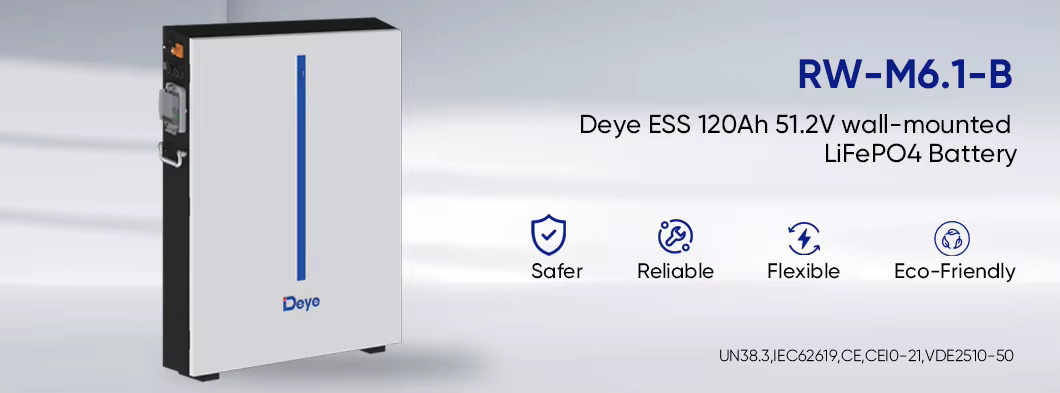

The Deye RW-M6.1 lithium battery is a cutting-edge energy storage solution designed for both residential and commercial applications.
Safer:
Cobalt-free lithium iron phosphate (LFP) Battery, safety and long life, high efficiency and high power density. Intelligent BMS, provides complete protection.
Reliable:
Support high discharge power. IP65, natural cooling, wide temperature range: -20℃ to 55℃.
Flexible:
Modular design, easy to expand, Max. 32 units in parallel, Max. capacity of 196kWh. Suitable for residential and commercial applications to increase self-consumption.

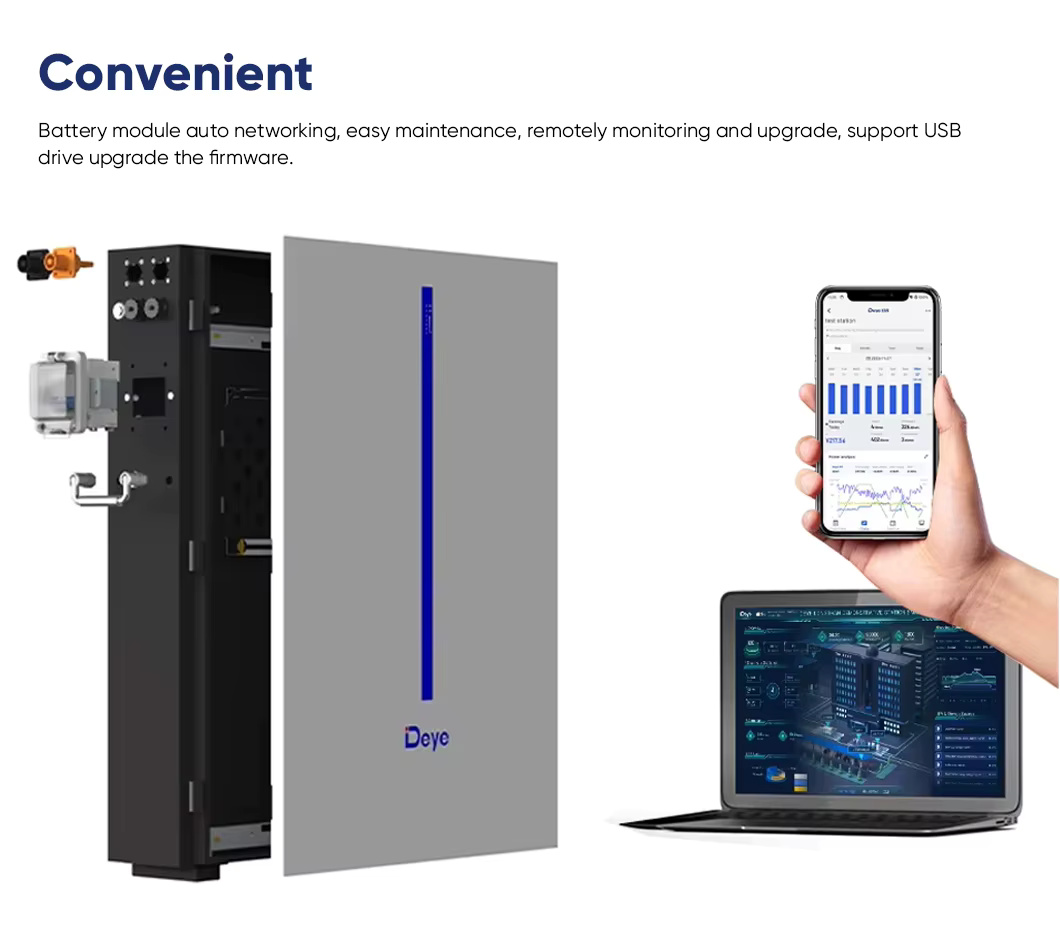

Convenient:
Battery module automatic networking, automatic IP addressing, easy maintenance, remote monitoring and upgrading, support USB device upgrade firmware.

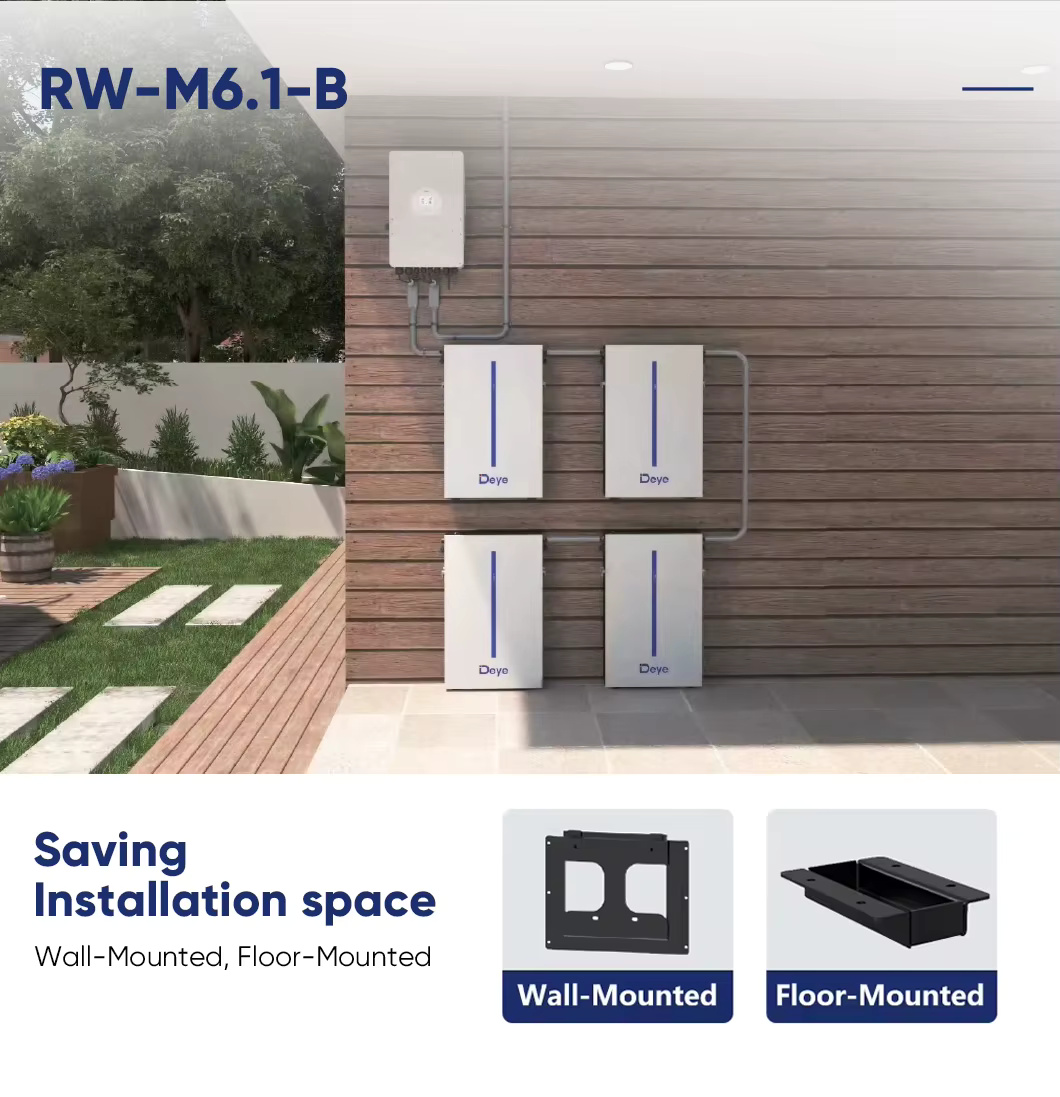

Wall-mounted:
Flat design, wall-mounted, saves installation space.
|
Model
|
RW-M6.1-B
|
|
Main Parameter
|
|
|
Battery Chemistry
|
LiFePO4
|
|
Battery Capacity(Ah)
|
120 Ah
|
|
Scalability
|
Max. 32 pcs in Parallel(196kWh)
|
|
Nominal Voltage(V)
|
51.2V
|
|
Operating Voltage(V)
|
43.2~57.6V
|
|
Energy(kWh)
|
6.14kWh
|
|
Usable Energy(kWh)
|
5.53kWh
|
|
Recommend Charge/Discharge Current(A)
|
60A
|
|
Max.Charge/Discharge Current
|
100A
|
|
Peak Power Charge/Discharge Current
|
150A
|
|
Other Parameter
|
|
|
Recommend Depth of Discharge
|
90%
|
|
Dimension(W/H/D,mm)
|
510*740*145mm
|
|
Weight Approximate(kg)
|
58kg
|
|
Master LED Indicator
|
5LED(SOC:20%~SOC100%), 3LED(working,alarming,protecting)
|
|
IP Rating of Enclosure
|
IP65
|
|
Operating Temperature
|
Charge:0~55℃/ Discharge:-20℃~55℃
|
|
Storage Temperature
|
0℃~35℃
|
|
Humidity
|
5%~95%
|
|
Altitude
|
≤2000m
|
|

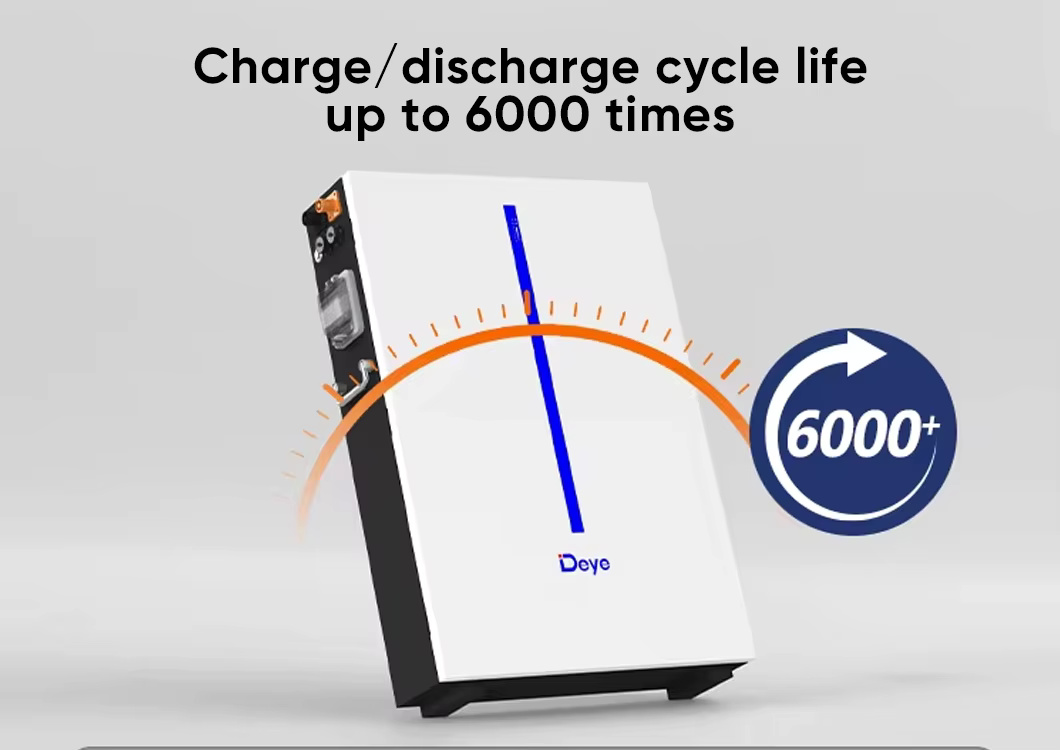

Cycle Life
|
≥6000（25℃±2℃， 0.5C, 90%DOD, 70%EOL
|
|
Installation
|
Wall-Mounted, Floor-Mounted
|
|
Communication Port
|
CAN2.0, RS485
|
|
Warranty Period
|
10 Years
|
|
Certification
|
UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50
|
